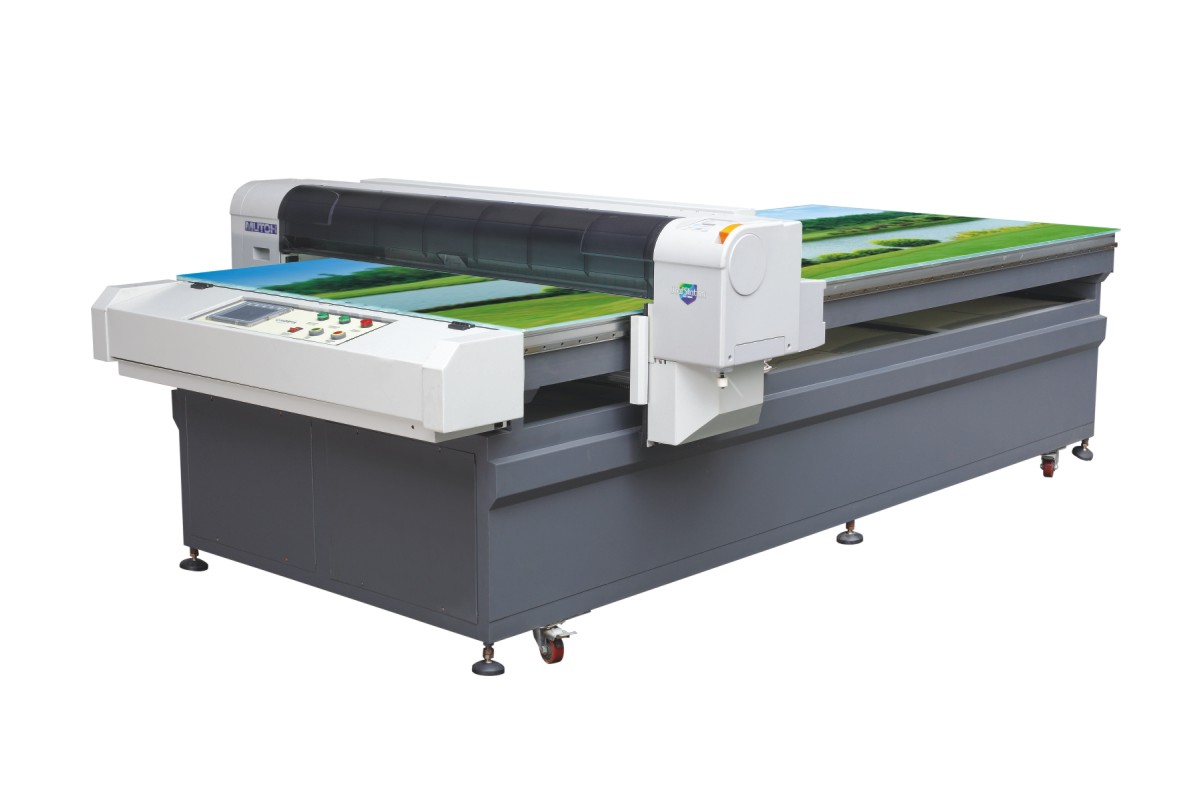

Digital Directly Screen Printer(Colorful 1225)
1: High speed & definition
2: No need film and plate-making
3: Save time and labor
4: Easy-to-operate
Flatbed colorful printer 1225 is widely used in leather, PU, metal, wooden, marble, tile, textile
It takes only 150 seconds to finish 1140*2500mm printing size, and the optimized resolution is 2880dpi. So it can meet special demands of high resolution printing works as well as mass production.
Technical Data
Print method: Micro Piezo(180zzles*8lines)
Print size: 1140mm*2500mm
Printer dimension: 3500mm*1800mm*1200mm(W*L*H)
Printer weight: 380kg
Print Methoo: Double-way artificial intelligence
Maximum thickness of medium: 12cm
Maximum weight of medium: 120kg
Interface: USB2.0
Output resolution: Highest: 2880dpi*2880dpi
Lowest: 360dpi*360dpi
Ink type: 4colors(CMYK)
Ink supplying method: Automaticly &Continuously
Input power: AC220V
1: High speed & definition
2: No need film and plate-making
3: Save time and labor
4: Easy-to-operate
Flatbed colorful printer 1225 is widely used in leather, PU, metal, wooden, marble, tile, textile
It takes only 150 seconds to finish 1140*2500mm printing size, and the optimized resolution is 2880dpi. So it can meet special demands of high resolution printing works as well as mass production.
Technical Data
Print method: Micro Piezo(180zzles*8lines)
Print size: 1140mm*2500mm
Printer dimension: 3500mm*1800mm*1200mm(W*L*H)
Printer weight: 380kg
Print Methoo: Double-way artificial intelligence
Maximum thickness of medium: 12cm
Maximum weight of medium: 120kg
Interface: USB2.0
Output resolution: Highest: 2880dpi*2880dpi
Lowest: 360dpi*360dpi
Ink type: 4colors(CMYK)
Ink supplying method: Automaticly &Continuously
Input power: AC220V
| Model | COLORFUL 1225 |
| Machine head | Mutoh(original from Japan) |
| Max output size | 1140mm×2500mm |
| Machine dimension(L*W*H) | 3500mm×1800mm×1200mm |
| Printable thickness | 0.1mm-120mm |
| Maximum weight of medium | 120kg |
| output resolution | min360dpi×360dpi- max2880dpi×2880dpi |
| ink type | 4 colors(KCMY) |
| ink supplying method | supply continuously |
| Voltage | 220V &110V |
| Power consumption(Watt) | 500W |
| Height adjustment | Auto |
| Speed(printing capacity) | 13 square metres/h |
| Applicable fields | aluminum,steel, plastic glass,metal,acrylics printing etc |
